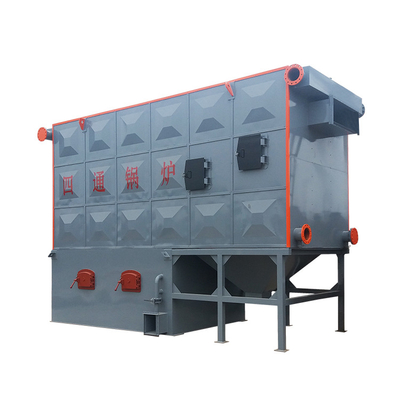

Horizontal Organic Heat Transfer Heater Thermal Oil Boiler Material Furnace 1200KW 1400KW 2400 KW 3500 KW

Product Description of organic heat transfer material heater

Sitong YLW series horizontal type thermal oil boiler is an safe and energy saving boiler with working characteristics of low pressure (1.0 MPa) and high temperature (350℃). The combustion equipment is chain grate, the fuel could be II class bituminous coal and biomass pellet (wood chips, bagasse, straw, etc.). The heat carrier is heat conduction oil, the circulating pump force heat transfer medium circulating in liquid phrase, and transfer heat to heat user equipment, then return to the heating furnace for reheating. Because of working in liquid state, the vertical type coal/biomass fired thermal fluid heater is safe and reliable.

Technical Parameters of organic heat transfer material heater

Boiler Details of organic heat transfer material heater

Case of organic heat transfer material heater

Company Information of organic heat transfer material heater

 Customer Visiting of organic heat transfer material heater

Every time the customer comes to visit the factory, Our leaders will accompany the customer to visit the entire process, and at any time to answer questions from customers in the process of the visiting.And then after a visit to the factory, we will have a group photo with the customer.

 Business Exhibition of organic heat transfer material heater

 Certification of organic heat transfer material heater

Warranty and after-sale service of organic heat transfer material heater

Sitong promises the top quality of every set of machine and best after-sales service as followings :

(A)The boiler body guarantee is two years , for accessories three years

(B)During the guarantee period , if the main body defective or broken without wrong operating , Sitong must replace the parts for free or prepare the spare-parts for free.

(C)Sitong should provide boiler technical service and operation guidance for whole life

long.

(D)Regarding to the installation and training , the buyer should take all the correlative charges (accommodation and food , round -trip tickets)

FAQ of organic heat transfer material heater

1.What is the highest temperature that thermal oil heater could achieve?

Sitong thermal oil heater can reach as high as 330℃, and working under low pressure (<1.0MPa)

The main types of Sitong thermal oil boiler includes YGL series vertical type fixed grate coal/biomass fired hot oil boiler, YLW series horizontal type chain grate coal/biomass hot oil heater, YLL series vertical type chain grate coal/biomass fuel thermal oil boiler, and YY(Q)W series horizontal type oil gas fired thermal fluid heater.

2. What is the size and humidity of coal/biomass fuel?

Size requirement of coal:6-25mm

Size requirement of blending coal:<50mm (the coal less than 6mm should less than 30%)

Diameter of biomass particle: 6~10mm, length: 25~50mm, water content < 15%, ash content < 2%, sulphur content<0.07%, chlorinity <0.07%, nitrogen content < 0.5%

3.What is the feeding method of Sitong coal fired thermal oil heater?

The combustion equipment of YGL series vertical type coal fired hot oil boiler is fixed grate, the feeding method is manual feeding.

The combustion equipment of YLW series horizontal type coal hot oil heater and YLL series coal fired thermal oil boiler is chain grate, the feed method is automatic loading by coal hopper.

4. What are the heat-resistance temperature of grate and furnace?

The heat resistance temperature of grate is related to the grate material, the highest temperature could be as high as 1100℃, and the lower temperature could be 700℃.

The highest heat resistance temperature of furnace could be about 1700℃~1800℃.
